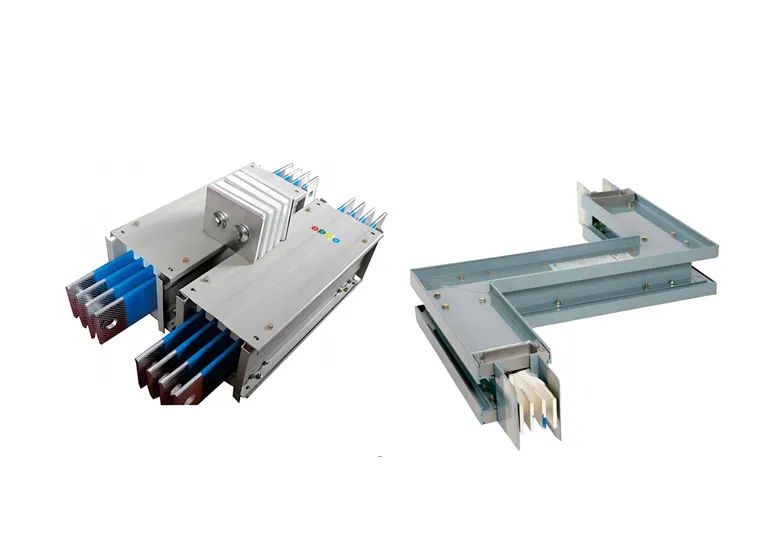

Bus duct are safe and efficient electrical equipment used for transmitting electrical energy and signals. Dense bus duct are usually made of conductive materials such as copper, aluminum, etc., and adopt a reasonable structure and design to ensure stable transmission and distribution of electrical energy. Aluminum material for bus duct are widely used in industrial buildings, commercial buildings, public facilities, and other places, becoming an irreplaceable and important component of modern electrical engineering.

Certainly! Below is a detailed article on Bus Duct that exceeds 1000 words, written in English and free of any company names.

Understanding Bus Duct: Types, Applications, and Advantages

Introduction to Bus Duct

A bus duct (also known as a busway) is an engineered electrical distribution system designed to efficiently transmit power in industrial, commercial, and large-scale residential buildings. Unlike traditional cable systems, bus ducts consist of rigid metal enclosures containing conductive busbars that distribute electricity with minimal energy loss.

Bus ducts are widely used in applications requiring high current capacity, flexibility, and reliability. They serve as an alternative to conventional wiring methods, offering advantages such as ease of installation, scalability, and enhanced safety.

Types of Bus Ducts

Bus ducts are categorized based on their design, insulation, and application. The main types include:

1. Air-Insulated Bus Duct

Uses air as the primary insulating medium.

Suitable for low to medium voltage applications.

Cost-effective but requires adequate spacing for heat dissipation.

2. Sandwich-Type Bus Duct

Features layered busbars separated by insulating material.

Compact design, ideal for space-constrained installations.

Provides better heat resistance and mechanical strength.

3. Resin-Insulated Bus Duct

Encases busbars in epoxy resin for superior insulation.

Resistant to moisture, dust, and chemical corrosion.

Commonly used in harsh environments like chemical plants and offshore facilities.

4. Segregated Phase Bus Duct

Each phase conductor is housed in a separate compartment.

Reduces electromagnetic interference and short-circuit risks.

Preferred for high-voltage power distribution.

5. Non-Segregated Phase Bus Duct

All phase conductors are placed within a single enclosure.

More economical but less resistant to fault propagation.

Suitable for low-voltage applications.

Key Components of a Bus Duct System

A typical bus duct system consists of the following components:

Busbars: Conductors (usually copper or aluminum) that carry electrical current.

Enclosure: A protective housing made of steel or aluminum to prevent physical damage.

Insulation Material: Prevents electrical leakage and short circuits.

Connectors & Joints: Ensure secure connections between bus duct sections.

Support Structures: Brackets and hangers to maintain alignment and stability.

Cooling System: Some high-capacity bus ducts include forced-air or liquid cooling.

Applications of Bus Duct Systems

Bus ducts are used in various industries due to their efficiency and adaptability:

1. Industrial Facilities

Factories, manufacturing plants, and refineries use bus ducts for heavy machinery power distribution.

High current-carrying capacity supports large motors and transformers.

2. Commercial Buildings

Office complexes, shopping malls, and hospitals rely on bus ducts for centralized power distribution.

Modular designs allow easy expansion as power demands grow.

3. Data Centers

Critical for uninterrupted power supply to servers and IT equipment.

Low-impedance bus ducts minimize energy loss and overheating risks.

4. Renewable Energy Plants

Solar and wind farms use bus ducts to connect power sources to the grid.

Resistant to environmental factors like humidity and temperature fluctuations.

5. Marine & Offshore Installations

Resin-insulated bus ducts are corrosion-resistant, making them ideal for ships and oil rigs.

Advantages of Bus Duct Over Conventional Cabling

1. Higher Current Capacity

Bus ducts can handle thousands of amperes, unlike cables that require multiple parallel runs.

2. Space Efficiency

Compact design reduces the need for bulky conduits and Cable Trays.

3. Easy Installation & Maintenance

Prefabricated sections simplify installation compared to complex wiring.

Modular design allows quick reconfiguration.

4. Enhanced Safety

Enclosed design minimizes fire hazards and electrical faults.

Better heat dissipation reduces overheating risks.

5. Scalability

Additional bus duct sections can be easily integrated as power needs increase.

6. Lower Energy Loss

Low-impedance busbars reduce voltage drop over long distances.

Challenges & Considerations

Despite their benefits, bus ducts have some limitations:

Higher Initial Cost: More expensive than traditional cabling but cost-effective in the long run.

Thermal Management: Requires proper ventilation to prevent overheating in high-load conditions.

Installation Expertise: Requires skilled labor for proper alignment and connection.

Future Trends in Bus Duct Technology

Advancements in bus duct systems include:

Smart Monitoring: IoT-enabled sensors for real-time temperature and current monitoring.

Eco-Friendly Materials: Recyclable and low-emission insulation materials.

Higher Voltage Ratings: Development of ultra-High-voltage bus ducts for grid applications.

Conclusion

Bus ducts are a reliable, efficient, and scalable solution for modern power distribution. Their ability to handle high currents, reduce energy loss, and adapt to various environments makes them indispensable in industrial, commercial, and renewable energy sectors. As technology evolves, bus ducts will continue to play a crucial role in smart and sustainable electrical infrastructure.
